Solar Panel Recycling Plant: Process, Equipment, and Benefits

With the rapid growth of solar photovoltaic (PV) installations, the number of retired, damaged, and defective solar panels is also increasing. solar panel recycling plant provides an effective solution for recovering valuable materials from end-of-life photovoltaic modules while reducing waste sent to landfills. A properly designed recycling system can process different types of PV panels and separate glass, aluminum, copper, silicon, and other recoverable materials for further use.

What Is a Solar Panel Recycling Plant?

A solar panel recycling plant is an integrated system designed to dismantle and separate waste photovoltaic modules. Solar panels generally consist of several layers and components, including an aluminum frame, tempered glass, photovoltaic cells, encapsulant materials such as EVA, a backsheet, junction box, cables, and other metals.

Depending on the panel design, the plant can use mechanical, thermal, or combined processing technologies. The main objective is to remove the frame and junction box, separate the glass and other components, and recover valuable materials from the remaining PV structure.

What Materials Can Be Recovered?

A solar panel recycling plant can produce several recyclable materials. The main recovered products include:

1. Aluminum – mainly comes from the external panel frame and can be remelted and reused.

2. Glass – accounts for a large proportion of many crystalline-silicon PV modules and can be processed for glass-related applications.

3. Copper – recovered from cables, ribbons, junction boxes, and electrical connections.

4. Silicon – photovoltaic cells contain silicon that can potentially be recovered for further processing.

5. Silver and other metals – small quantities may be present in solar cells and electrical components.

6. Plastic and polymer materials – EVA, backsheets, and other polymers can be separated or processed according to the recycling technology.

The exact recovery composition depends on the panel type, manufacturer, age, and recycling process.

How to Build a Solar Panel Recycling Plant

When building a solar panel recycling plant, the first step is to determine the types and quantities of PV modules to be processed. The plant capacity, panel construction, required product purity, available space, and local environmental regulations should all be considered.

A typical plant can be divided into several sections:

• Waste panel receiving and inspection

• Aluminum frame and junction box removal

• Cable and component separation

• Glass separation

• Crushing and size reduction

• Screening and material separation

• Dust collection and environmental protection

• Recovered material storage

The equipment configuration should be customized according to whether the plant processes crystalline-silicon panels, thin-film modules, or mixed photovoltaic waste.

Main Equipment for Solar Panel Recycling

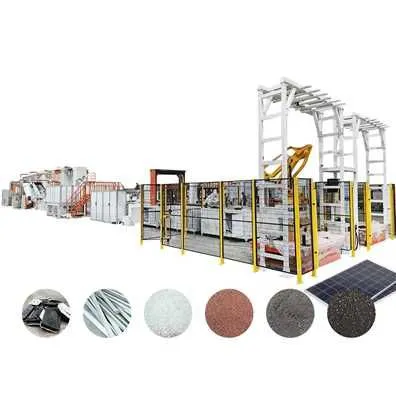

A complete recycling line may include an aluminum frame dismantling machine, cable and junction box removal equipment, conveyors, shredders or crushers, vibrating screens, magnetic separators, air separators, and dust collection systems.

For advanced recycling applications, additional equipment may be used to separate photovoltaic cells and recover silicon or other valuable metals. Automated feeding and conveying systems can also be integrated to improve continuous operation and reduce manual handling.

Solar Panel Recycling Process

The general recycling process starts with inspection and dismantling. Waste PV modules are first checked and sorted according to type and condition. The aluminum frame, junction box, and cables can then be removed.

After preliminary dismantling, the remaining panel structure is processed through specialized separation equipment. Glass can be separated from the laminated layers, while crushing and screening can reduce the remaining material into smaller particles. Different separation technologies are then used to concentrate metals, silicon-containing materials, and polymer fractions.

A simplified process can be described as:

Waste Solar Panels → Dismantling → Frame/Cable Removal → Glass Separation → Crushing → Screening → Material Separation → Recovered Products

Environmental and Economic Benefits

The importance of a solar panel recycling plant goes beyond material recovery. Recycling reduces the amount of photovoltaic waste requiring disposal and helps return useful resources to the manufacturing cycle. Recovering aluminum, glass, copper, silicon, and other materials can reduce the demand for some virgin raw materials.

For recycling companies, a properly designed plant can also create multiple recyclable product streams instead of treating discarded panels as waste. At the same time, enclosed processing equipment and dust collection systems can help control dust and improve the working environment.

solar panel recycling plant combines dismantling, crushing, screening, and separation technologies to transform end-of-life photovoltaic modules into reusable resources. By recovering glass, aluminum, copper, silicon, and other valuable materials, the plant supports resource conservation and more sustainable PV waste management. Selecting suitable equipment and designing the process around the actual panel composition and required output quality are essential for establishing an efficient and environmentally responsible solar panel recycling operation.
